A modular wire mesh panel and post system designed to protect sensitive work zones, equipment, inventory, and personnel while providing controlled access where it is needed.
Shop Restrict-Guard®Restrict-Guard® provides modular protection and access control around sensitive work zones, inventory storage, facility equipment, and machinery.
The system can be configured in a wide variety of layouts depending on the needs of your facility. Sliding and swinging doors can also be incorporated to provide employee access while maintaining a defined protected area.
With three panel system options available, Restrict-Guard® can be configured for everything from pedestrian management and forklift separation to machinery guarding and protected storage.
Talk With NASP
Select the construction style that best matches your application, access requirements, and installation environment.
The STRONG system uses an L-frame assembly that mounts to structural posts. It can be configured with different panel sizes, posts, and gates to create a wide variety of layouts.
Systems can also be extended, relocated, removed, and replaced as facility requirements change.
The HD system uses post-less liftable panels mounted to floor brackets. Panels can be lifted from their base mounts to give employees access when periodic maintenance or housekeeping is required.
The BASIC system uses welded tube-steel frames and wire mesh panels. It can help direct pedestrian traffic, separate forklifts, protect machinery, and create enclosed areas for valuable equipment.

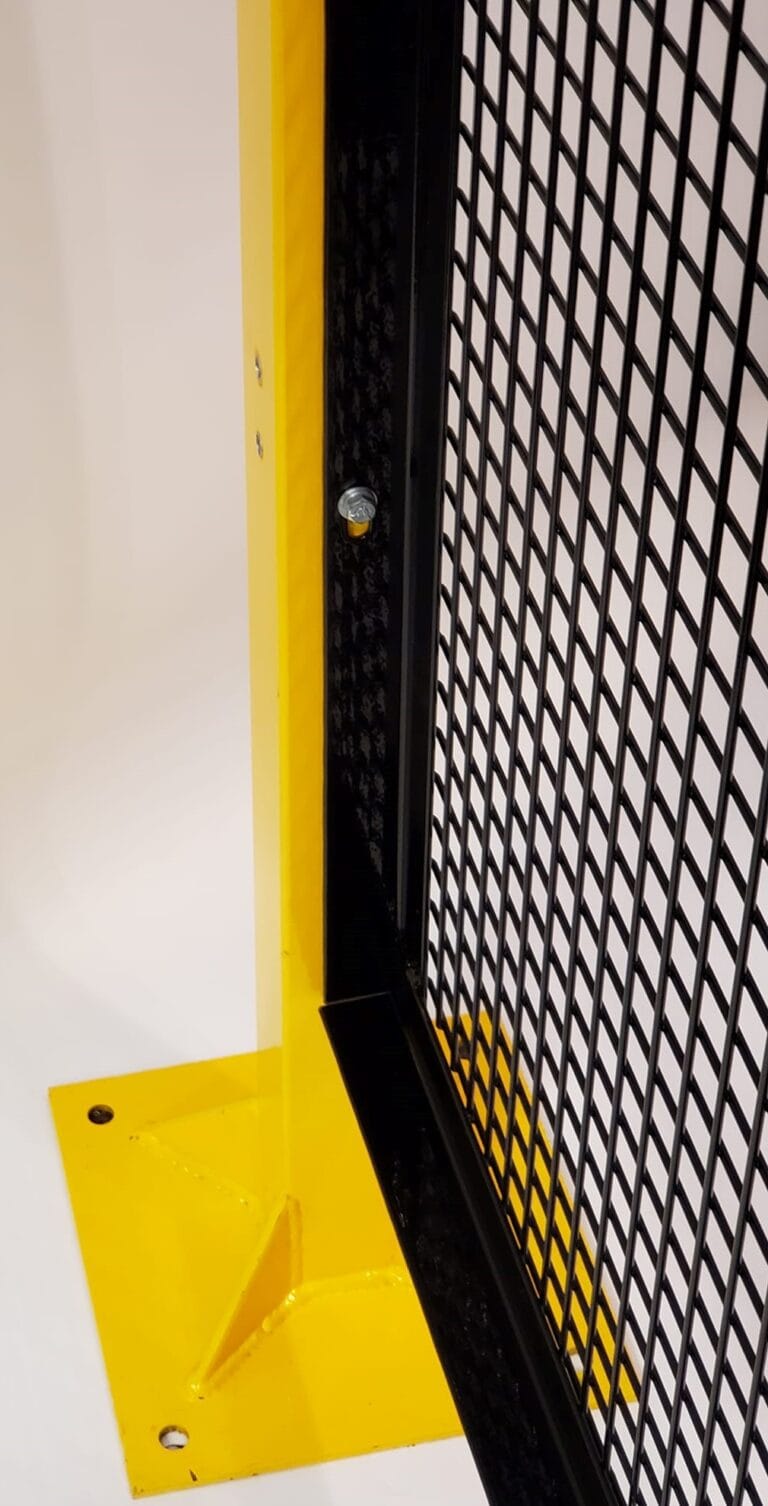

Restrict-Guard® STRONG uses a post and L-frame assembly that can be arranged around equipment, work areas, access points, and other protected zones.
Multiple gating arrangements can be produced using the available mesh panel sizes, posts, and gates. The system is designed for straightforward installation using basic tools and accessories.
1-1/2″ angle frame with 1/8″ thickness and slot mounting; 1″ square mesh with .120 thick wire; powder-coated black finish; 2-1/2″ square steel mounting posts with 10″ square bases.
The HD post-less and liftable system uses a set of 4 x 6 floor mounting brackets. Mesh panels mount directly to the floor brackets without traditional vertical posts.
When employees need access for maintenance, housekeeping, or periodic service, the panels can be lifted from their base mounts.
1-1/2″ square tube with 16-gauge wall, 1″ square mesh with .120 thick wire, powder-coated black finish, and 4 x 6 1/4″ steel base plate mounts.
The BASIC system uses welded tube-steel frames and wire mesh panels to establish durable boundaries around equipment, pedestrian areas, and workspaces.
In enclosed configurations, BASIC can also help safeguard valuable equipment and expensive machinery. Its applications include pedestrian management, forklift separation, machinery guarding, and workspace zoning.
16-gauge 1-1/2″ tube steel, welded frame with 11-gauge welded wire mesh, and 2-1/2″ square steel mounting posts with 10″ square bases.
Restrict-Guard® panels and accessories can be arranged to create protected zones while maintaining practical access for employees and facility operations.
Standard Restrict-Guard® components provide a starting point for building your enclosure. Custom panel sizes are also available upon request.
| Component | Model | Details |
|---|---|---|
| Wire Mesh Panel | SG-PNM2-1902-B | 6′ high × 8″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1903-B | 6′ high × 12″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1907-B | 6′ high × 28″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1908-B | 6′ high × 32″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1910-B | 6′ high × 40″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1912-B | 6′ high × 48″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Wire Mesh Panel | SG-PNM2-1915-B | 6′ high × 60″ wide panel. 20 × 20 mm steel frame with 22 × 100 steel mesh grid. Matte black powder-coated finish. |
| Restrict-Guard Post | SG-BP-2040-Y | Basic 40 × 40 post, 81.125″ height, safety yellow. |
| 3′ Swing Door | SG-DKSL-4015 | Single-leaf swing door kit for 40 × 40 posts. Maximum width 59.06″. Includes frame, hinges, magnet, and handle. |
| 3′ Sliding Door | SG-DKSSU-4-1500 | Single sliding door kit for 40 × 40 posts. Includes upper slide guide, magnet, latching bolt, and door handle. |
* Floor mounting hardware not included.

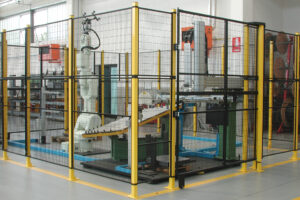

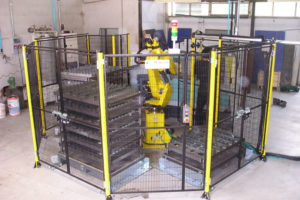

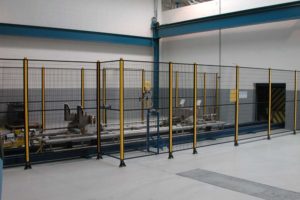

Restrict-Guard® can be configured around equipment, work areas, access points, and facility traffic patterns.
Restrict-Guard® can help establish protected areas and controlled access throughout facilities of many different types.
Custom panel sizes are available upon request. Talk with NASP about the layout, access requirements, and protection needs of your facility.
Explore Restrict-Guard® kits and components, or contact NASP for help determining the right configuration for your application.
